VT-7
Rugged and reliable design tablet, integrated docking station.
With GPIO, ACC, USB, DC, J1939, OBD-II interfaces. Ready and ideal for fleet management and telematics.
Feature
ELD Made Easy
With SAE J1939/OBD-II interfaces, recording data automatically compliant with multiple HOS rules. (FMCSA) including Property/Passenger 60-hour/7 days & 70-hour/8-day.

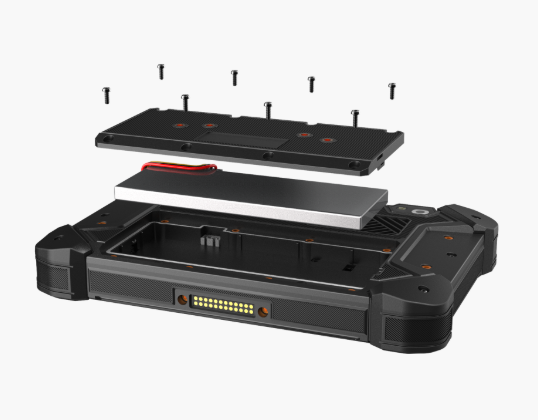

Replaceable Battery
Built-in Li-polymer battery makes the tablet convenient for portable use. 5000mAh of battery capacity supports the tablet work for 5 hours in operation mode typically. Easily to replace a new battery by maintenance personnel.

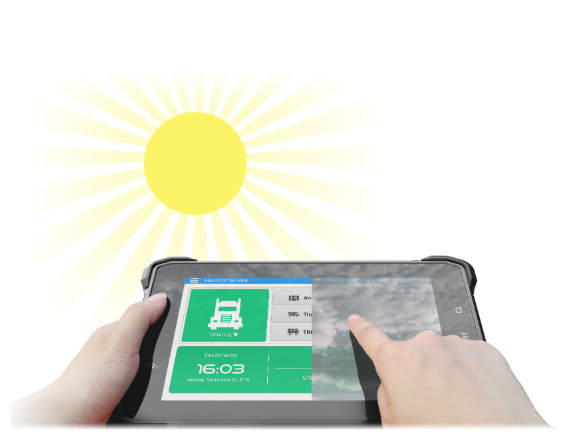

Sunlight Readable Screen
800cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in harsh environment both in and out-of-vehicle. 10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.

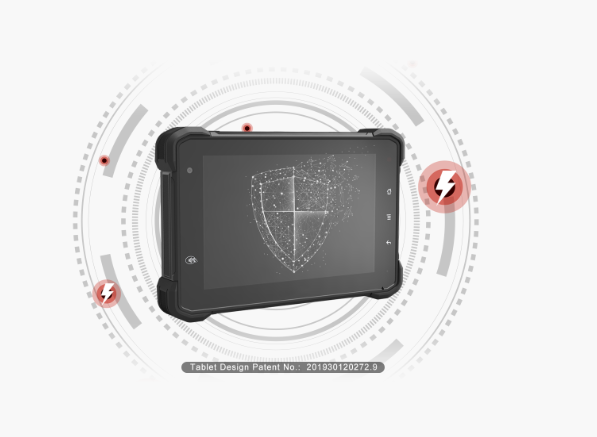

All-round Ruggedness
TPU material corner drop protection provides all-round protection for tablet. Compliance with IP66 rating dust-proof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military MIL-STD-810G.
Docking Station
Security lock hold the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support SAEJ1939 or OBD-II CAN BUS protocol with memory storage, compliance with ELD/HOS application. Support rich extended interfaces according to customer’s requirements, such as RS422, RS485 and LAN port etc.
Real-time Precision Tracking
Dual-satellite system running GPS+GLONASS. Integrated 4G LTE for providing round-the-clock connectivity.
Specification
| System |
| CPU |
Qualcomm Cortex-A7 Quad-core processor, 1.1GHz |
| GPU |
Adreno 304 |
| Operating System |
Android 7.1.2 |
| RAM |
2 GB LPDDR3 |
| Storage |
16 GB eMMC |
| Storage Expansion |
Micro SD 128 GB |
| Communication |
| Bluetooth |
4.2 BLE |
| WLAN |
IEEE 802.11a/b/g/n; 2.4GHz/5GHz |
Mobile Broadband
(North America Version) |
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26
WCDMA: B1/B2/B4/B5/B8
GSM: 850/1900MHz |
Mobile Broadband
(EU Version) |
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900MHz |
| GNSS |
GPS/GLONASS/BEIDOU |
| NFC(Optional) |
Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s,
MIFARE 1K,4K,NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes
Card Emulation Mode(from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s |
| Functional module |
| LCD |
7″ HD (1280 x 800), sunlight readable 800 nits |
| Touchscreen |
Multi-point Capacitive Touch Screen |
| Camera (Optional) |
Front: 2 MP |
| Rear: 8 MP with LED light |
| Sound |
Build-in speaker 2W, 85dB |
| Internal Microphones |
| Interfaces(On Tablet) |
Type -C, Docking connector, Ear Jack |
| Sensors |
Acceleration sensors, Ambient light sensor, Gyroscope, Compass |
| Physical Characteristics |
| Power |
DC 8-36V(ISO 7637-II compliant) |
| Physical Dimensions (WxHxD) |
207.4×137.4×30.1mm |
| Weight |
810g |
| Environment |
| Gravity Drop Resistance Test |
1.5m drop-resistance |
| Vibration Test |
MIL-STD-810G |
| Dust Resistance Test |
IP6x |
| Water Resistance Test |
IPx7 |
| Operating Temperature |
-10°C ~ 65°C (14°F-149°F)
0°C ~ 55°C (32°F-131°F)(charging) |
| Storage Temperature |
-20°C ~ 70°C (-4°F ~ 158°F) |
| Interface(Docking Station) |
| USB2.0 (Type-A) |
x 1 |
| RS232 |
x 2 |
| ACC |
x 1 |
| Power |
x 1 |
| GPIO |
Input x 2
Output x2 |
| CAN Bus 2.0, J1939, OBD-II |
Optional (1 of 3) |
| RS485 |
Optional |
| RS422 |
Optional |
This Product is Under Protection of Patent Policy
Tablet Design Patent No: 201930120272.9, Bracket Design Patent No: 201930225623.2, Bracket Utility Patent No: 201920661302.1
Accessories
Allen Wrench Screws for RAM SIM Card Plug
USB To Type-C Cable
OBD-II Female to Open Wire
J1939 Female to Open Wire
Power Adaptor
